Pov tseg Yas Tshuaj yej Khob Ua Tshuab
High Efficiency: Txo lub sij hawm voj voog los ntawm 30% nrog servo- lub cev muaj zog tsav.
Precision: ± 0.01mm repeatability rau txoj kev sib sau.
Ntawv pov thawj: CE & ISO 9001 Cov qauv ua raws.
Customizable: Worktable loj thiab mob stroke raws li kev xav tau.

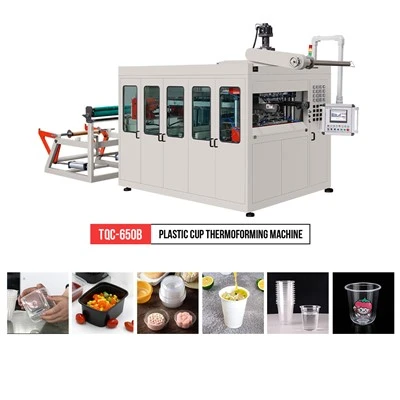

TQC-650B pov tseg yas tshuaj yej khob ua tshuab txais servo lub cev muaj zog rau daim ntawv pub thiab streching, PLC rau programe, kov npo rau kev ua haujlwm, ruaj khov, tsis tshua muaj suab nrov thiab ua haujlwm siab.
Lub tshuab yas yas pov tseg no tuaj yeem tsim cov tais diav pov tseg, khob dej txias, yogurtcups, khob jelly, khob dej khov, lub thawv khoom noj ceev, lub tais yas, tshuaj yej npog. Tshuaj, lub teeb kev lag luam, textile, tourism, cov khoom ua si thiab lwm yam khoom ntim yas kuj tuaj yeem ua tiav.
Cov khoom tiav tiav:
Tshuab Parameter:
| Qauv | TQC-650B |
| Max tsim cheeb tsam | 650 * 320 hli |
| Max tsim qhov tob | 125 hli |
| Daim ntawv Thickness | 0.3-1.8 hli |
| Daim ntawv dav dav | 6 60mm |
| Daim ntawv haum | PP, PS, HIPS, PET, PVC, PLA thiab lwm yam. |
| Cua Siab | 0.6-0.8 hli |
| Kev siv cua | 2.0 m³ / min |
| Kev siv dej | 0.5m³/h |
| Rated zog | 9 8kw |
| Lub zog cua sov | 78 kwj |
| Fais fab mov | AC 380V, 50Hz, Peb-theem, Plaub-hlau |
| Dimension | L7000 * W2000 * H3100mm |
| Qhov hnyav | Txog 6T |
Vim li cas peb:
-Kev paub R & D Department
-Kev txhim kho tsis tu ncua los ntawm kev tsim kho tshiab thiab R&D
- teb sai rau cov kev xav tau ntawm kev lag luam
-Txoj hauj lwm nyiaj txiag zoo & TQM
- Muaj peev xwm ntau lawm
-Muab cov kev daws teeb meem
- Tus nqi pheej yig & khoom xa tuaj raws sij hawm
-Cov cuab yeej thiab thev naus laus zis tau muab raws li qhov xav tau
-Qhov zoo tshaj plaws yog txoj hauv kev txhim kho
-Kev pab cuam tom qab muag zoo raws li lub tuam txhab lub koob npe nrov
