Khoom
Tsis siv neeg khob hau Thermoforming tshuab
Qauv: TTF-520AF
Chaw nres tsheb: Plaub chaw nres tsheb
Max.Forming cheeb tsam: 520 * 400mm
Max.Forming Qhov siab: 110mm
Phaj thickness: 0.2-1.6mm
Kev Ua Haujlwm Ceev (Max.): 30 zaug / min
Fais fab mov: AC 380V, 50Hz, Peb-theem, Plaub-hlau
Daim ntawv thov: tais, ntim, thawv, hau, thiab lwm yam.
Cov ntsiab lus tseem ceeb: PLC, Cav, Bearing, Gearbox, Tsav, Iav, Twj
Khoom siv: PP, PS, HIPS, PET, PVC, PLA thiab lwm yam.
Tag Nrho Tsis Siv Neeg Plaub -chaw nres tshebYas Thermoforming Tshuab
TTF series puv - tsis siv neeg thermoforming tshuab yog peb cov khoom tsim tawm tshiab tshaj plaws. Lub tshuab ua ke sib sau, xuas nrig ntaus, txiav, thiab stacking rau hauv cov txheej txheem. dav siv thiab haum rau feem ntau ntawm cov neeg siv khoom thov, nws tuaj yeem tsim cov tais yas, ntim, thawv, hau, thiab lwm yam. Lub tshuab yog tag nrho tsav los ntawm servo motor. kev ua haujlwm ruaj khov, tsis tshua muaj suab nrov, ua haujlwm zoo, ua haujlwm zoo.
Automatic High Speed Thermoforming Machines (lub thawv noj su ua tshuab) feem ntau yog siv rau cov khoom siv yas xws li PVC, PET, APET, PETG, PP, PE, PS, ABS, HIPS thiab cov khoom siv biodegradable (PLA), thiab cov khoom siv flocking thiab lwm yam. Nws yog dav siv los tsim cov tais zaub mov, khoom siv hluav taws xob, khoom siv hluav taws xob, ntawv sau, khoom siv kho mob, khoom siv tes ua txhua hnub, thiab lwm yam.
Tsis siv neeg khob hau Thermoforming tshuab Technical Parameters
| Qauv | TXF-520 AF | TXF-520A |
| Chaw nres tsheb | Plaub chaw nres tsheb | Peb chaw nres tsheb |
| Pwm Loj (Max.) | 520 * 400 hli | |
| Qhov tob tob (Max.) | 110 hli | |
| Daim ntawv thickness | 0.2-1.6 hli | |
| Txoj kev ceev (Max.) | 30 zaug / min | |
| Cua siab | 0.6-0.8 hli | |
| Kev siv cua | 3.0 m³ / min | |
| Kev siv dej | 0.7m³/h | |
| Daim ntawv dav (Max.) | 550 hli | |
| Daim ntawv haum | PP, PS, HIPS, PET, PVC, PLA thiab lwm yam. | |
| Fais fab mov | AC 380V, 50Hz, Peb-theem, Plaub-hlau | |
| Rated zog | 136 kwv | 120 Kw |
| Lub zog cua sov | 75 kwb | 75 kwb |
| Txheej txheem | Tsim- xuas nrig ntaus- txiav- stacking | |
| Dimension | L10800 * W4650 * H2670mm | L8200 * W4650 * H2670mm |
| Qhov hnyav | Txog 11.0T | 9.0t ,ua |
Cov qauv:
FAQ:
1.Koj puas yog cov chaw tsim khoom?
Yog lawm,we tau ua cov yas thermoforming machineover 17 xyoo.
2.Dab tsi txog lub sijhawm them nyiaj?
Feem ntau 30% T / T ua ntej, tus so yuav tsum tau themlos ntawm TTua ntej shipping.
3.machine kho thiab installation
peb tuaj yeem xa cov kws tshaj lij mus rau cov neeg siv khoom lub teb chaws rau kev teeb tsa thiab kev hloov kho.

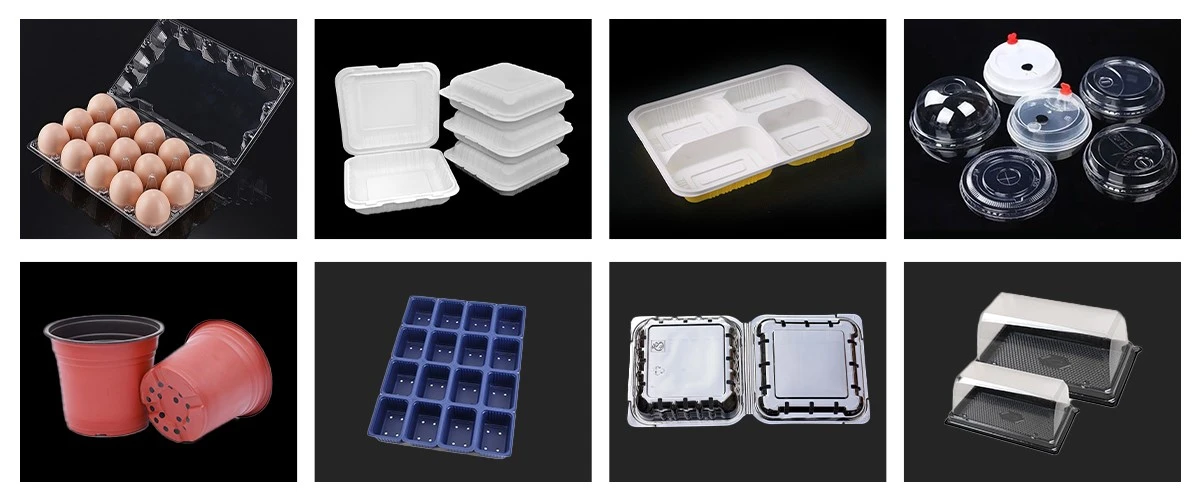

Haum rauntau lawm cov qe thawv zoo, tableware, khoom kho mob, muaj pob, inserts thiab tais, thiab lwm yam.
Muaj peev xwm tsim tausiab -cov khoom tsis muaj kev txiav txim siab.
Yuav nruab nroghigh -cov khoom siv hluav taws xob ua kom sov, kom ua tiav kev hloov pauv sai, ua haujlwm siab, txuag hluav taws xob..
