Khoom

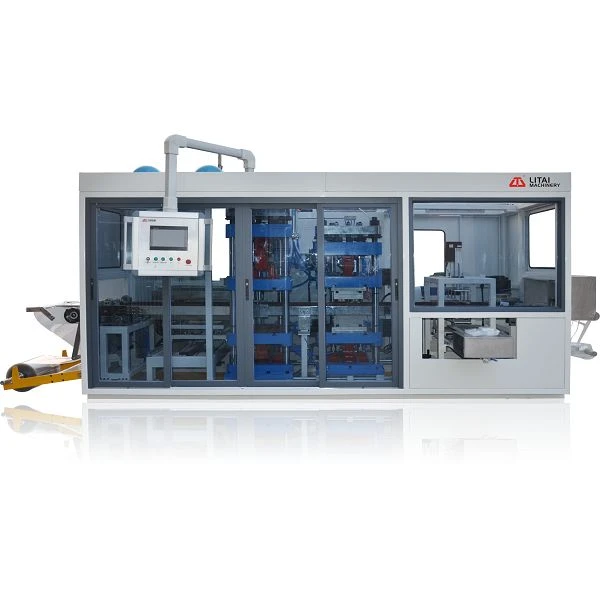

Yas Ntim Box Thermoforming Tshuab
Qauv: TTF-520A
Chaw nres tsheb: Peb lub chaw nres tsheb
Max.Forming cheeb tsam: 520 * 400mm
Max.Forming Qhov siab: 110mm
Phaj thickness: 0.2-1.6mm
Kev Ua Haujlwm Ceev (Max.): 30 zaug / min
Fais fab mov: AC 380V, 50Hz, Peb-theem, Plaub-hlau
Daim ntawv thov: tais, ntim, thawv, hau, thiab lwm yam.
Cov ntsiab lus tseem ceeb: PLC, Cav, Bearing, Gearbox, Tsav, Iav, Twj
Khoom siv: PP, PS, HIPS, PET, PVC, PLA thiab lwm yam.
Lub khob yas / lub tais thermoforming tshuab tsim nyog rau kev tsim PP, PS, HIPS, PVC, PET, thiab lwm yam ntaub ntawv yas, ua ntau lub khob, tais, phaj, hau, thawv thiab lwm yam khoom, xws li khob mis nyuj, jelly khob, khob haus khob, instant noodle tais.
SAMPLE DAWINGS
Yas Ntim Box Thermoforming Tshuab ntawm Parameter:
| Qauv | TXF-820A | TXF-700A | TXF-520A |
| Pwm Loj (Max.) | 820 * 650 hli | 700 * 550 hli | 520 * 400 hli |
| Qhov tob tob (Max.) | 140 hli | 120 hli | 110 hli |
| Daim ntawv thickness | 0.2-1.6 hli | ||
| Txoj kev ceev (Max.) | 30 zaug / min | ||
| Cua siab | 0.6-0.8 hli | ||
| Kev siv cua | 4.0 m³ / min | 3.4 m³ / min | 3.0 m³ / min |
| Kev siv dej | 0.7m³/h | ||
| Daim ntawv dav (Max.) | 8 50mm | 7 30mm | 550 hli |
| Daim ntawv haum | PP, PS, HIPS, PET, PVC, PLA thiab lwm yam. | ||
| Fais fab mov | AC 380V, 50Hz, Peb-theem, Plaub-hlau | ||
| Rated zog | 199 kwv | 188 kwv | 120 Kw |
| Lub zog cua sov | 140 kwv | 118 kwv | 75 kwb |
| Txheej txheem | Tsim-txiav- stacking | ||
| Dimension | L11800 * W4300 * H2800mm | L11500 * W4500 * H2800mm | L8200 * W4650 * H2670mm |
| Qhov hnyav | 16.5 t | 19.0 T Nws | 9.0t ,ua |
FAQ
Lub tshuab no puas tuaj yeem tsim Biodegradable (PLA) khob?
Yog, kiag li. PLA khoom yog rhiab rau qhov kub thiab txias. TQC-750S nta German Heaters nrog Segment Control, tso cai rau kev tswj xyuas qhov kub thiab txias los ua cov ntawv PLA zoo kawg nkaus yam tsis muaj melting lossis deforming lawv.
Lub peev xwm ntau lawm yog dab tsi?
Lub tshuab khiav ntawm qhov siab tshaj plaws ntawm 42 cycles ib feeb. Koj cov zis tag nrho nyob ntawm qhov pwm layout (kab noj hniav). Piv txwv li, yog tias koj siv 32-kab kab noj hniav pwm rau cov khob dej me me, cov zis yuav yog 32 x 42=1,344 khob ib feeb.
Lub kaw lus tswj ua haujlwm li cas?
Lub tshuab siv Micro PLC system ua ke nrog txiv neej-Machine Interface (touchscreen). Qhov no tso cai rau tag nrho cov haujlwm-los ntawm kev pub khoom noj mus rau kev txiav- kom ua haujlwm tau zoo thiab yooj yim saib xyuas los ntawm ib tus neeg teb xov tooj.
