PP PS Daim Ntawv Kab

APPLICATION AREA Daim ntawv extruder yog tsim los ntawm extrusion, calendaring, traction thiab dov. Cov khoom tseem ceeb yog abrasion resistant, resistant rau corrosion, siab -kub resistant los ntawm high quality tshwj xeeb- kho. Tsawg tsis kam quab yuam nyob rau hauv tuag taub hau extruding channel ua daim ntawv thickness ...

Xa kev nug

Khoom Taw qhia

Daim ntawv extruder yog tsim los ntawm extrusion, calendaring, traction thiab dov. Cov khoom tseem ceeb yog abrasion resistant, resistant rau corrosion, siab -kub resistant los ntawm high quality tshwj xeeb- kho. Tsis tshua muaj zog tsis kam nyob rau hauv tuag lub taub hau extruding channel ua rau cov ntawv tuab sib npaug, sab hauv kauv tank hauv peb cov menyuam ua kom muaj cua txias zoo thiab nws yooj yim los hloov thiab nruab net changer nrog hydraulic siab chav tsev, tsis tas yuav tsum tau nres tshuab. Lub tshuab extrudes PP / PS granule rau PP / PS daim ntawv nrog ib qho xim, uas yog siv los tsim cov khoom yas los ntawm cov yas thermoforming tshuab, xws li khob, ntim khoom noj, tais, tais, tais, hau, thiab lwm yam.

SPECIFICS
A. EXTRUDER PART:2 SETS
Cov zis: Max . 250kg/h Ntsia Hlau Dia. (lub ntsiab tshuab): Ф95mm Ntsia Hlau Dia. (auxiliary tshuab): Ф65mm Ntsia Hlau Rod Dia. (lub ntsiab tshuab): 35: 1 Screw L / D Ratio (lub tshuab pabcuam): 36: 1 Ntsia Hlau & Barrel Khoom: 38CrMoAlA tom qab kho nitrogen nrog qhov zoo tshaj plaws hardness, muaj zog corrosion kuj thiab lub neej ntev kev pab cuam. Lub cev muaj zog loj: 75KW Lub cev muaj zog: 22KW Cua sov txoj kev: Aluminium-casted rhaub, sab nraud npog yog rwb thaiv tsev paj rwb.
B. DIE HEAD PART: 1 SET
Sheet Structure: 2 txheej. T-die Design: zoo li daim ntaub-hanger, pab kom cov khoom melting ntws sib npaug ntawm qhov hluav taws xob. Tuag taub hau dav: 800mm Ua tiav daim ntawv dav: 670mm Phaj Thickness: 0.3mm-2mm. Cua sov txoj kev: thermal ob peb cua sov.
C. FILTER PART: 2 SETS
Worm-Gear Case: 2 pcs Lim Loj: 220 x 38 mm Net Dia.: Ф4.7mm Lub zog cua sov: 11.6kw Net Changer: Los ntawm hydraulic system, txhua lub teeb suav nrog ob lub lim dej.

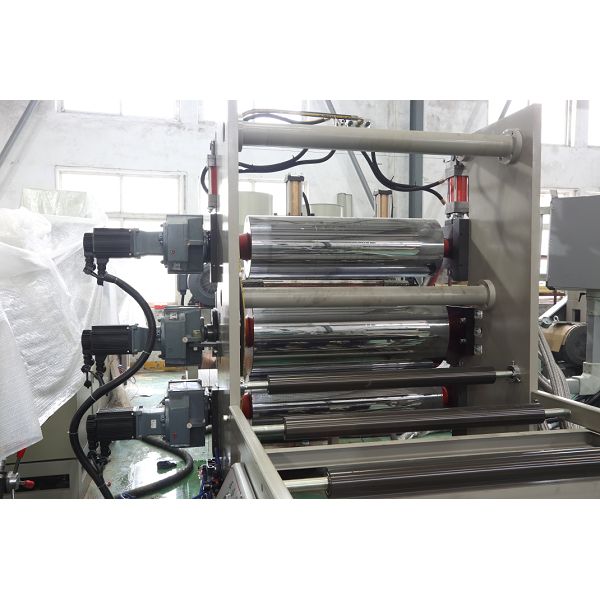

D. 3 ROLLERS PART: 1 SET
Roller Dia./ Length: 320mm / 1000mm, 2sets 440mm / 1000mm, 1set Roller No.: 3 pcs Rollers ncav cuag 'daim iav nto' tus qauv, thiab nto yog plating nyuaj chromium. Roller linear ceev: 0-24m / min Cov menyuam txav: los ntawm kev sib cais servo lub cev muaj zog, 2.2kw Roller layout txoj kev: txhua tus menyuam txheej ib sab Txoj kev txias: nws muaj qhov ntsuas kub tsis tu ncua kom tswj tau qhov kub thiab txias. Txhua lub teeb tswj txhua tus menyuam nyias nyias.
E. ROTARY ROLL WINDER
Rewinding cov khoom pov tseg rau kev rov ua dua tshiab.
F.OOB CHAW UA HAUJ LWM
Ob chav ua haujlwm chaw nres tsheb yog ib qho yooj yim kom tau txais daim ntawv, yog tias ib tug menyuam puv, peb tuaj yeem siv lwm cov menyuam. Nws tsis tas yuav tsum nres lub tshuab kom txuag tau sijhawm. Ib tus menyuam tuaj yeem tuav 500-600KG daim ntawv, daim ntawv tiav cov menyuam txoj kab uas hla tuaj yeem nyob ib ncig ntawm 1000mm.

Tuam Txhab Cov Lus Qhia luv luv
Rui'an Litai Machinery CO., LTD yog tsim nyob rau hauv 2001. Rau ntau tshaj 16 xyoo, peb tsom rau kev tshawb fawb, tsim, tsim thiab kev lag luam ntawm thermoforming tshuab, yas khob ntau lawm kab, BOPS yas thermoforming tshuab, mutil-txheej PP / PS / PET ntawv extruder, pwm, thiab lwm yam. Muaj ntau tshaj li 72 lub teb chaws, teb chaws USA, Qaib ntxhw, Qaib ntxhw Russia, Kuwait, Iran, Brazil, Chile, Bolivia, Saudi Arabia, Peru, thiab lwm yam.
